Radiator cores


We can supply a vast number of different core patterns. Many of these core are manufactured in-house and others and acquired from manufacturers around the world. We are able to supply more than 40 different vintage core patterns.

If your vintage radiator has a core pattern that is not in our standard supply range, we can often make the tooling and supply a one-off that is authentic for your car.

There are too many different types of fin on tube cores to list but, because we buy our cores from suppliers all over the world, we can nearly always fit a pattern that was original for your radiator or a similar pattern with a higher cooling capacity.

Core patterns

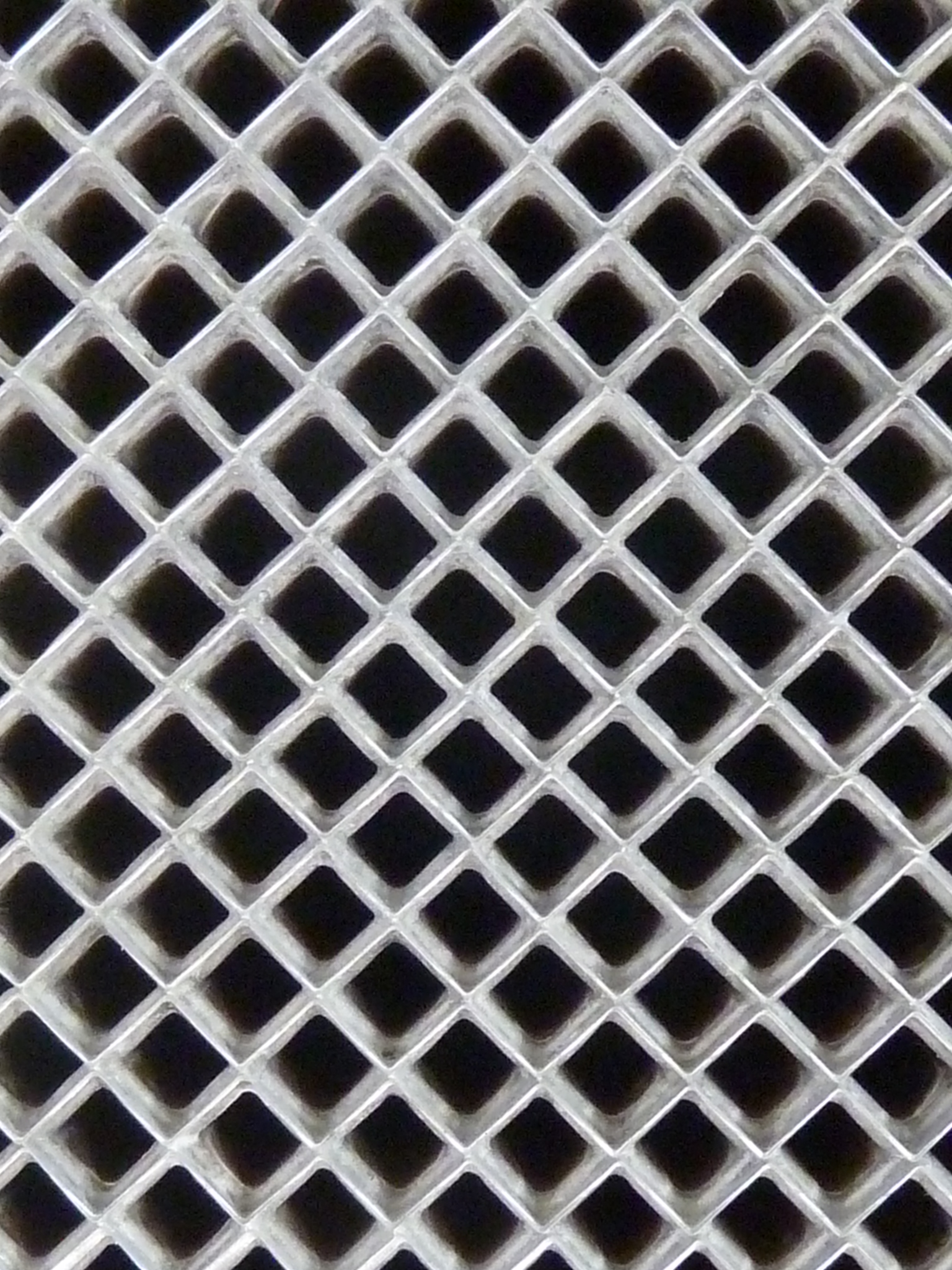

Various types of radiator cores


Item 1

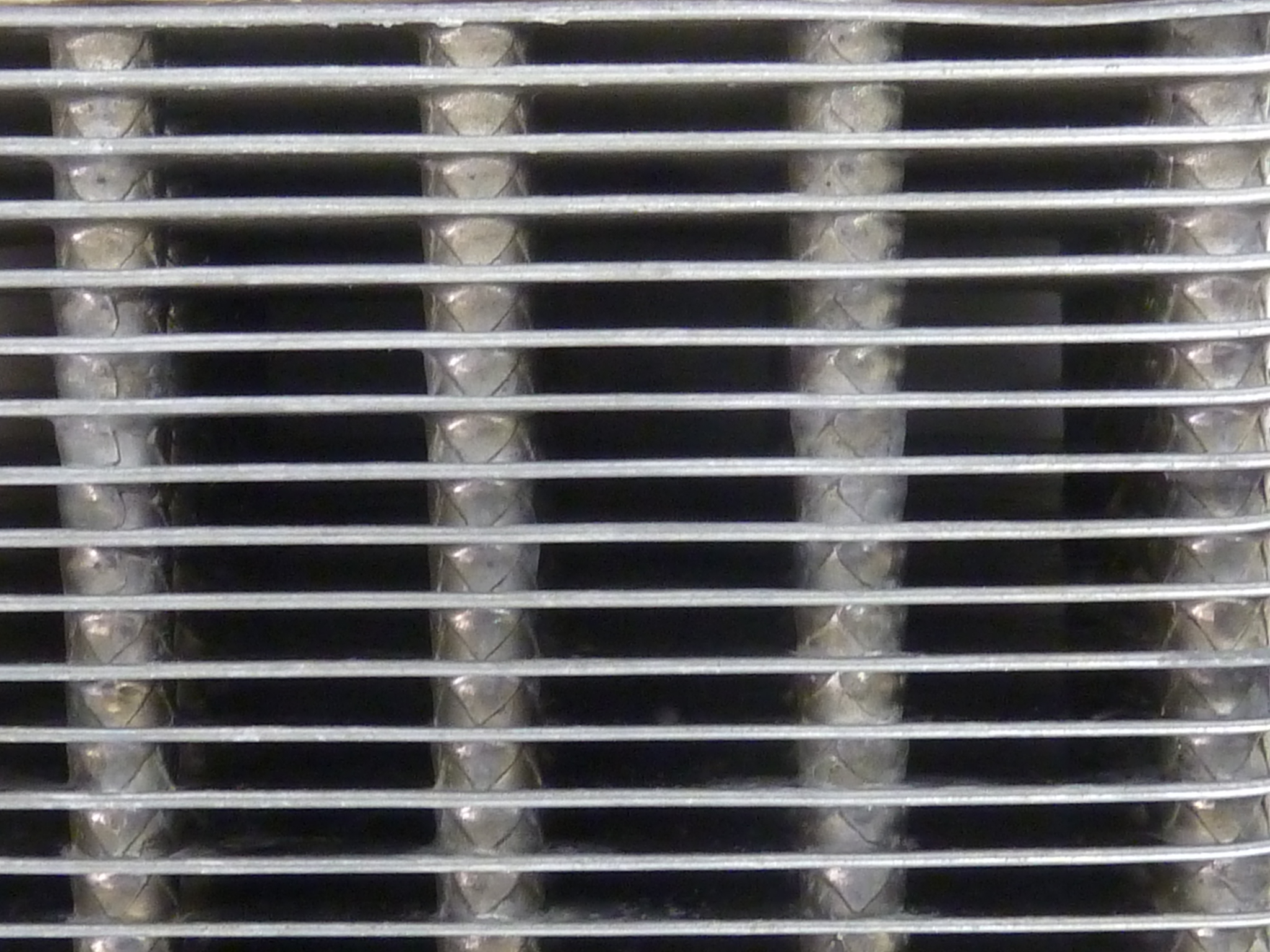

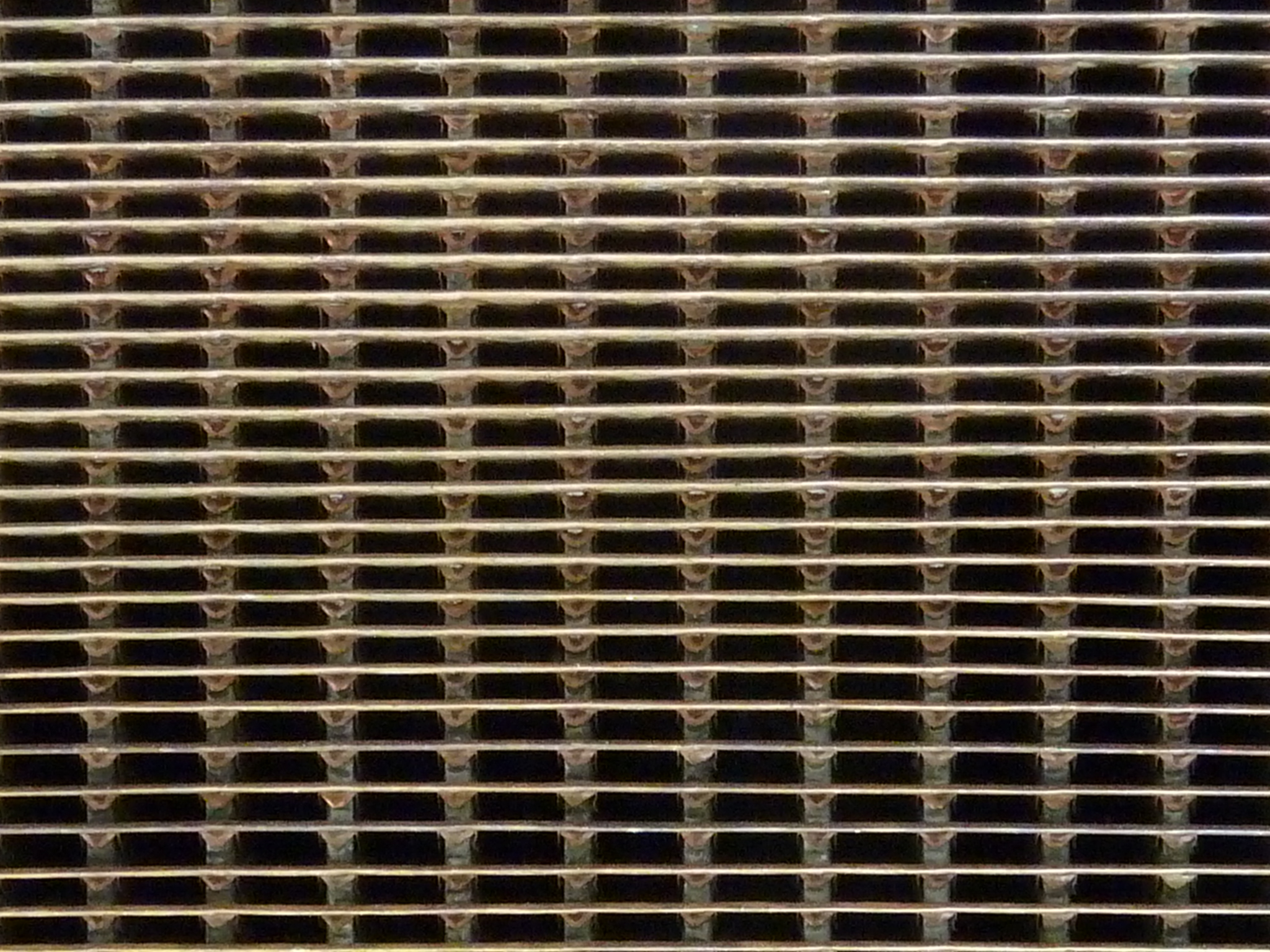

Fin On Tube Cores

These cores are build up of round or oval tubes with horizontal or serpentine fins. This type of core was developed around 1900 and is still used to the present date.

Item 1 (1)

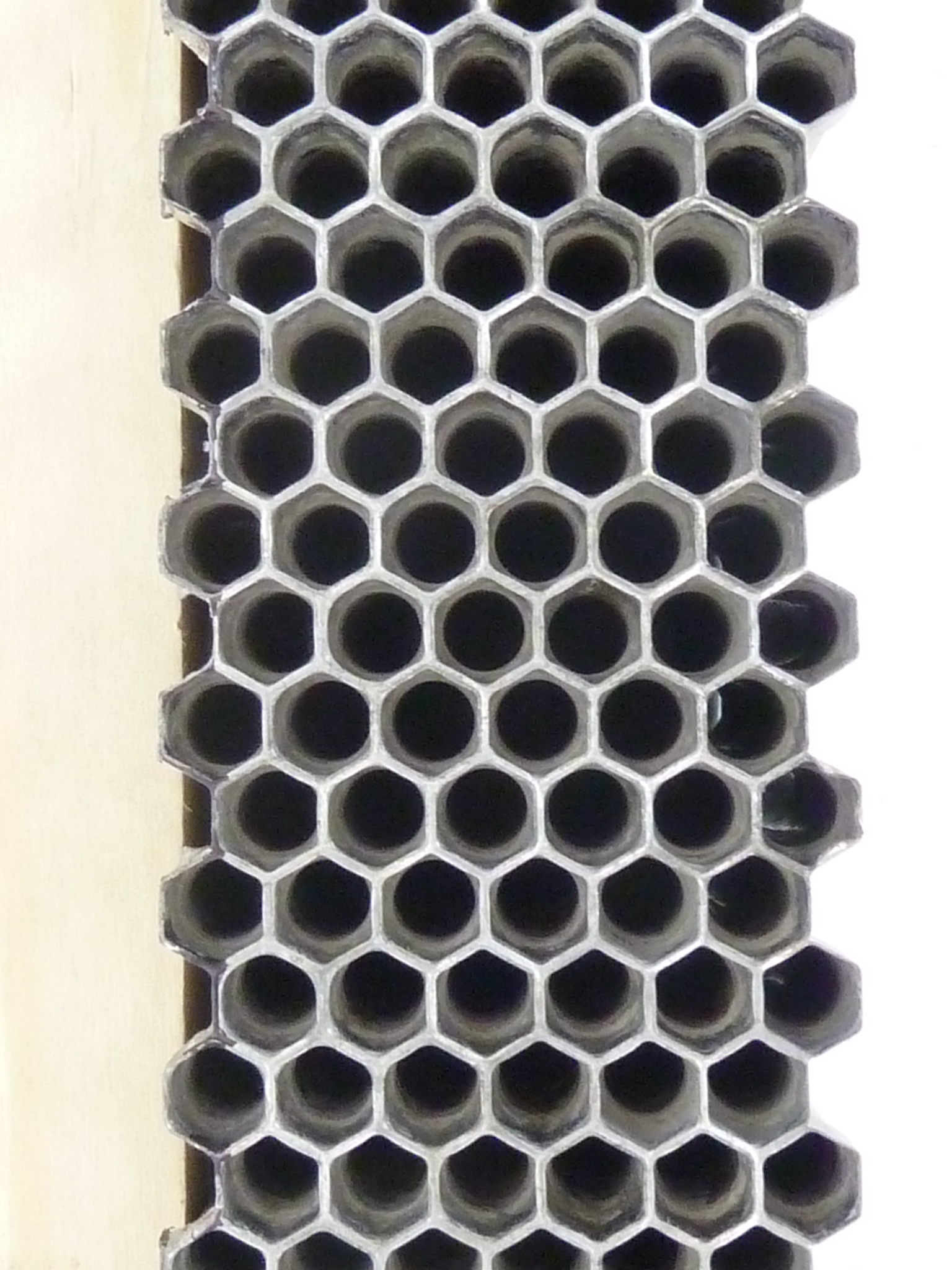

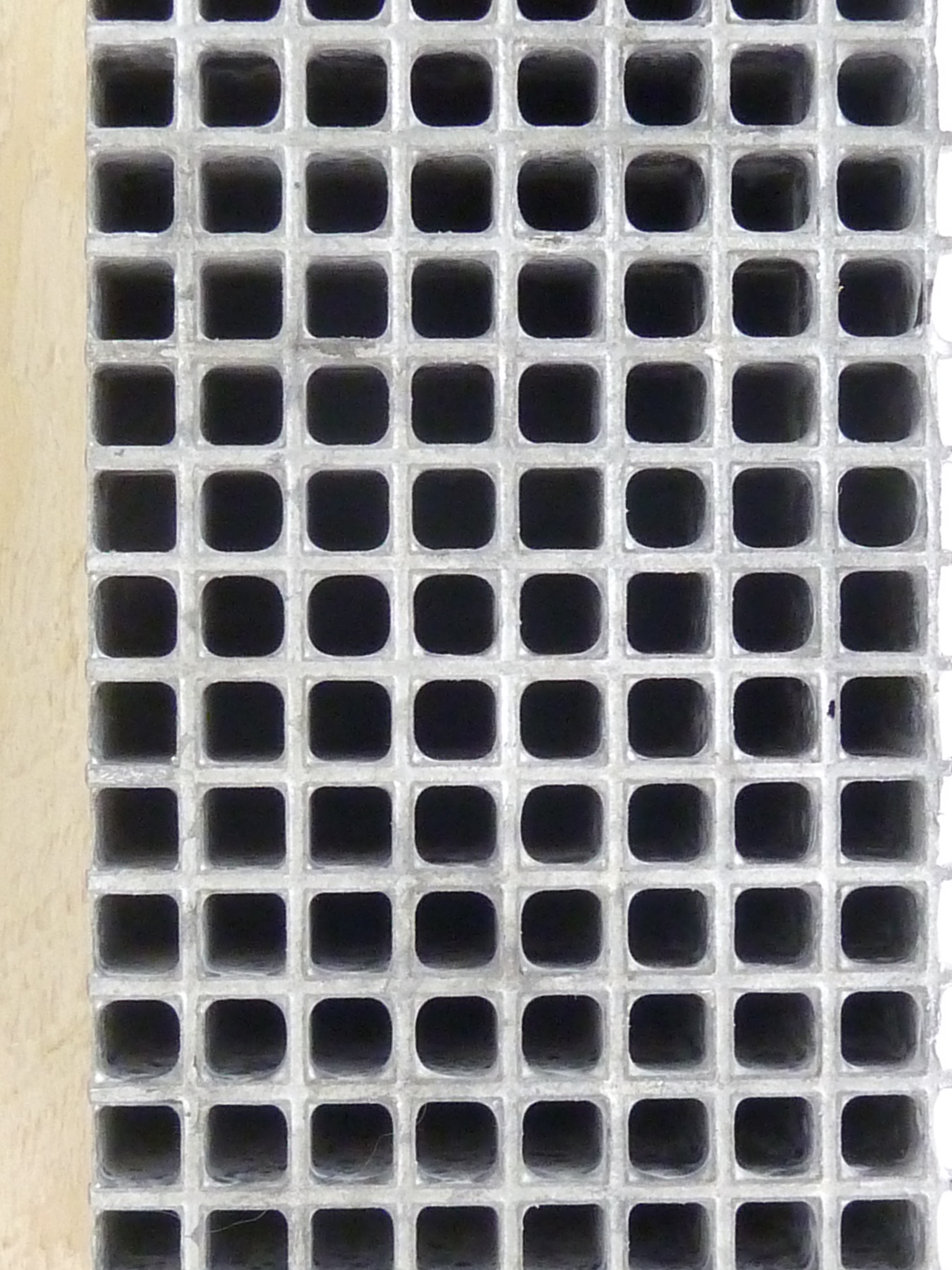

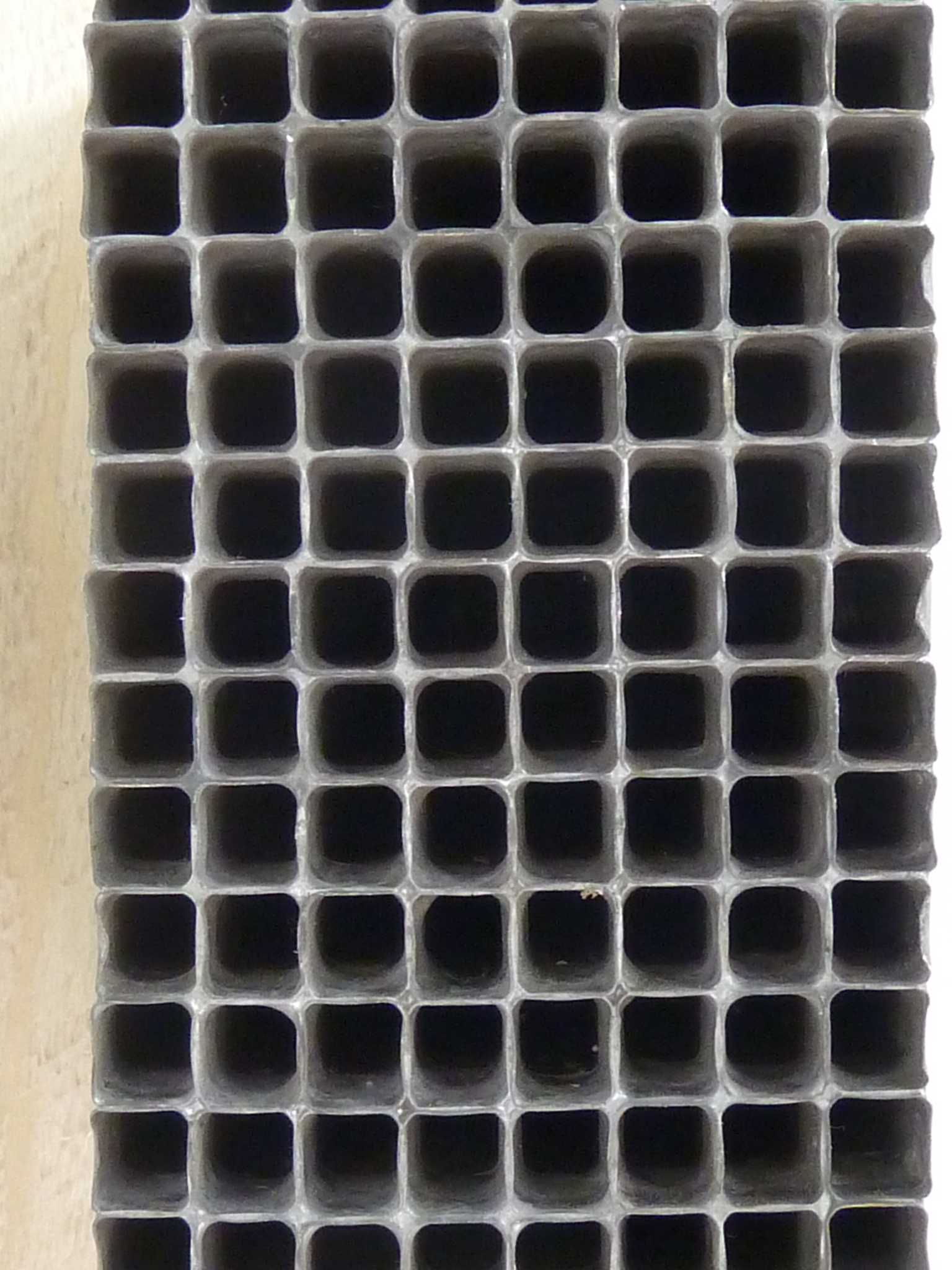

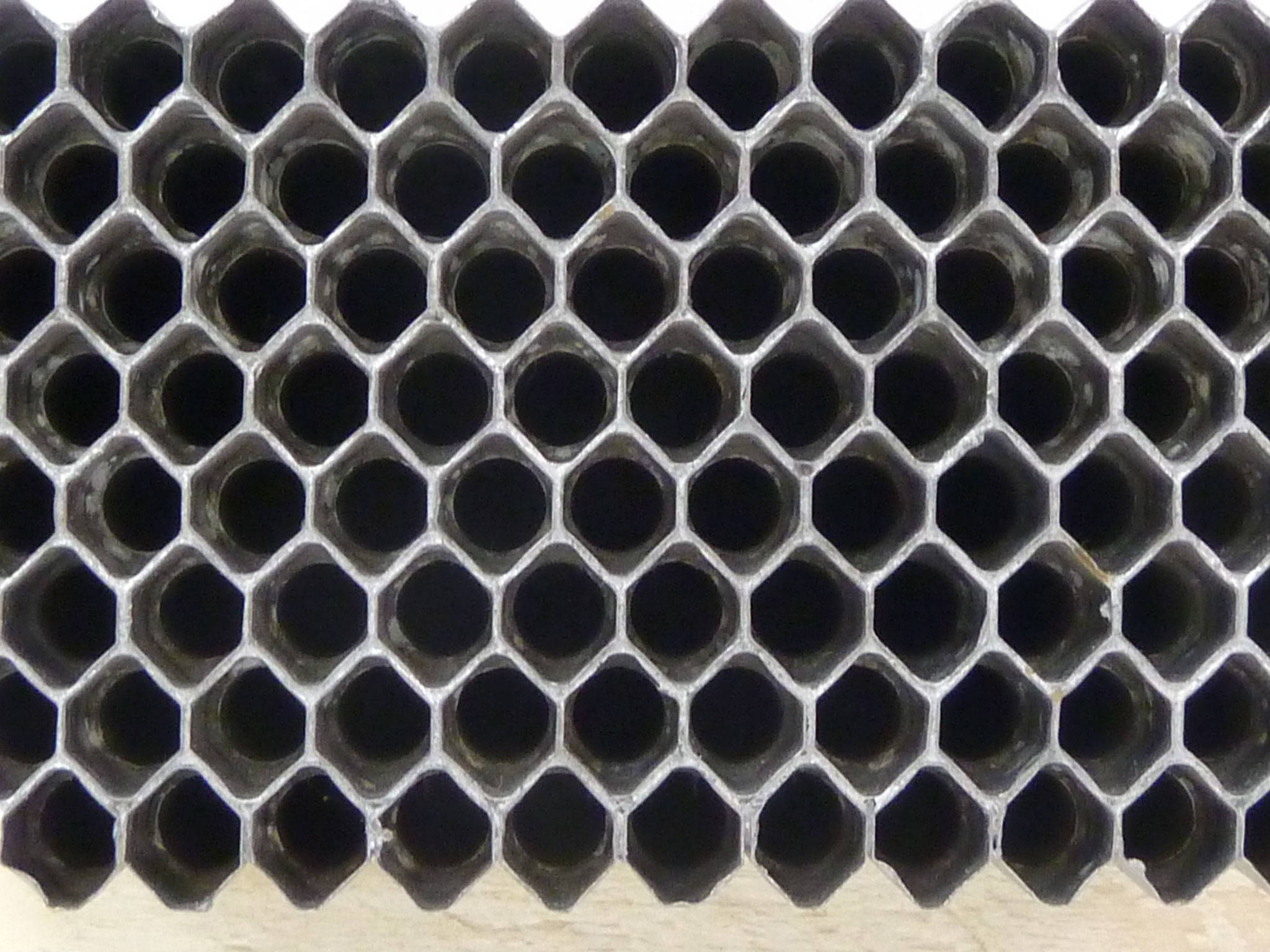

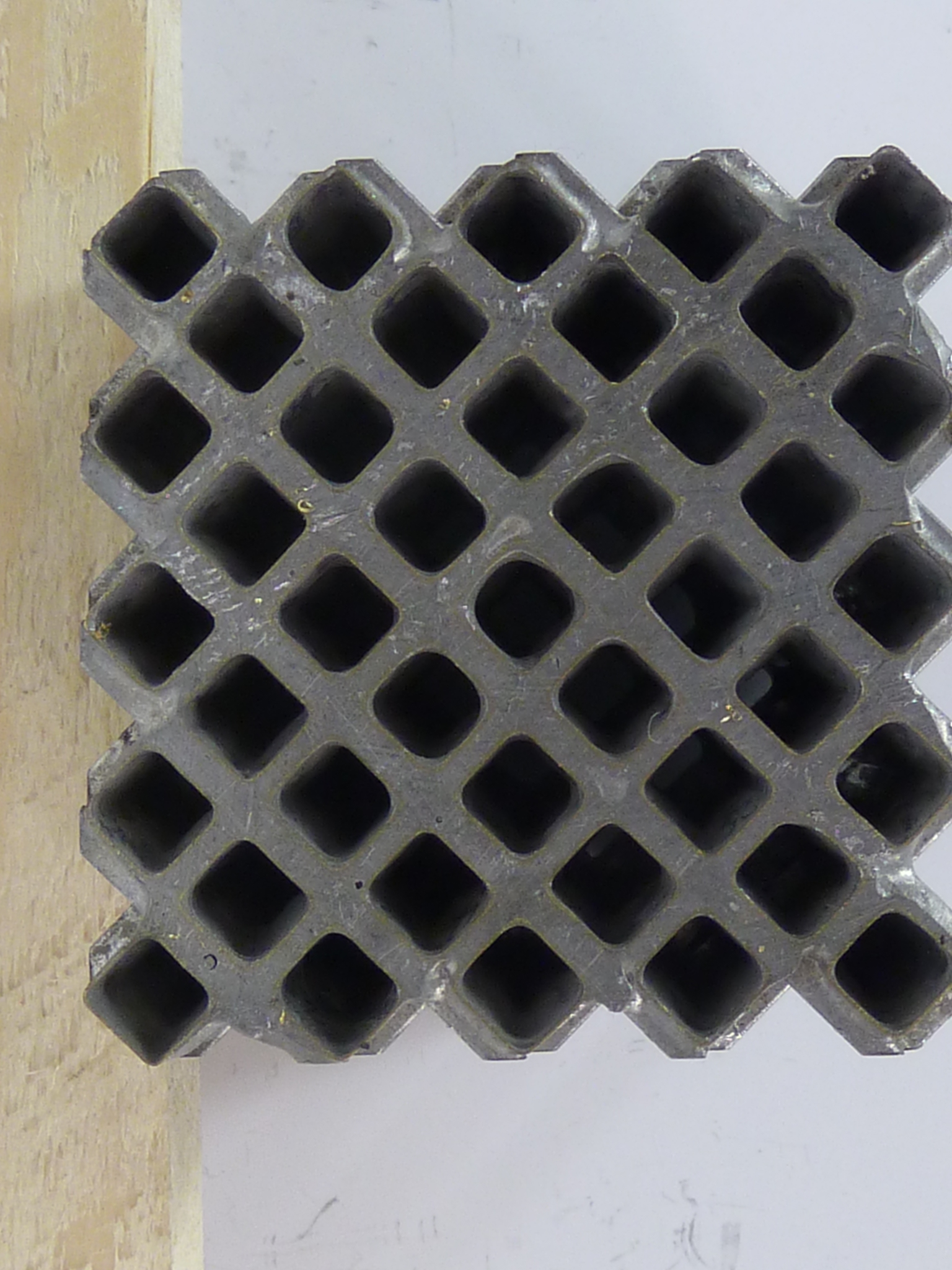

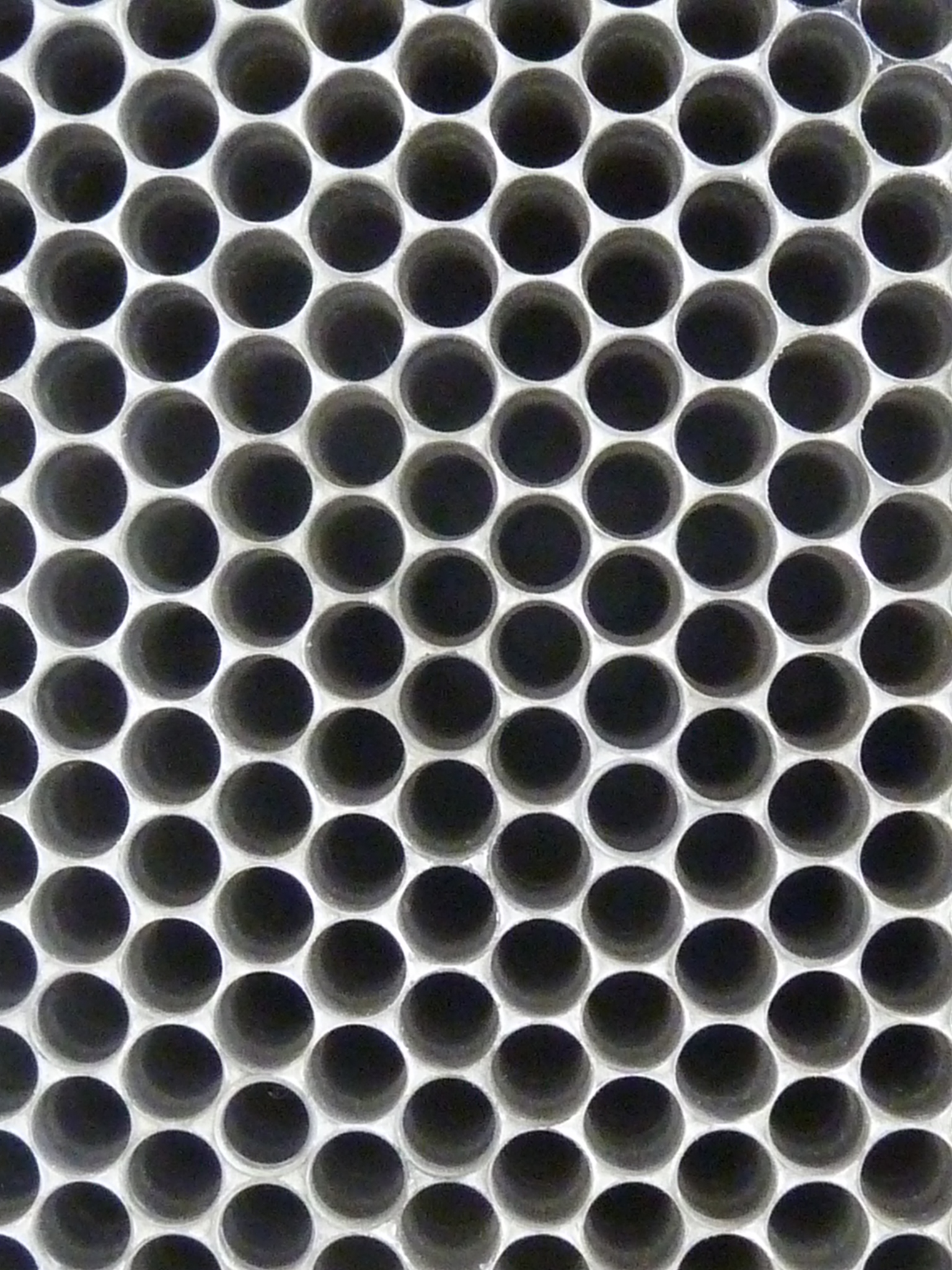

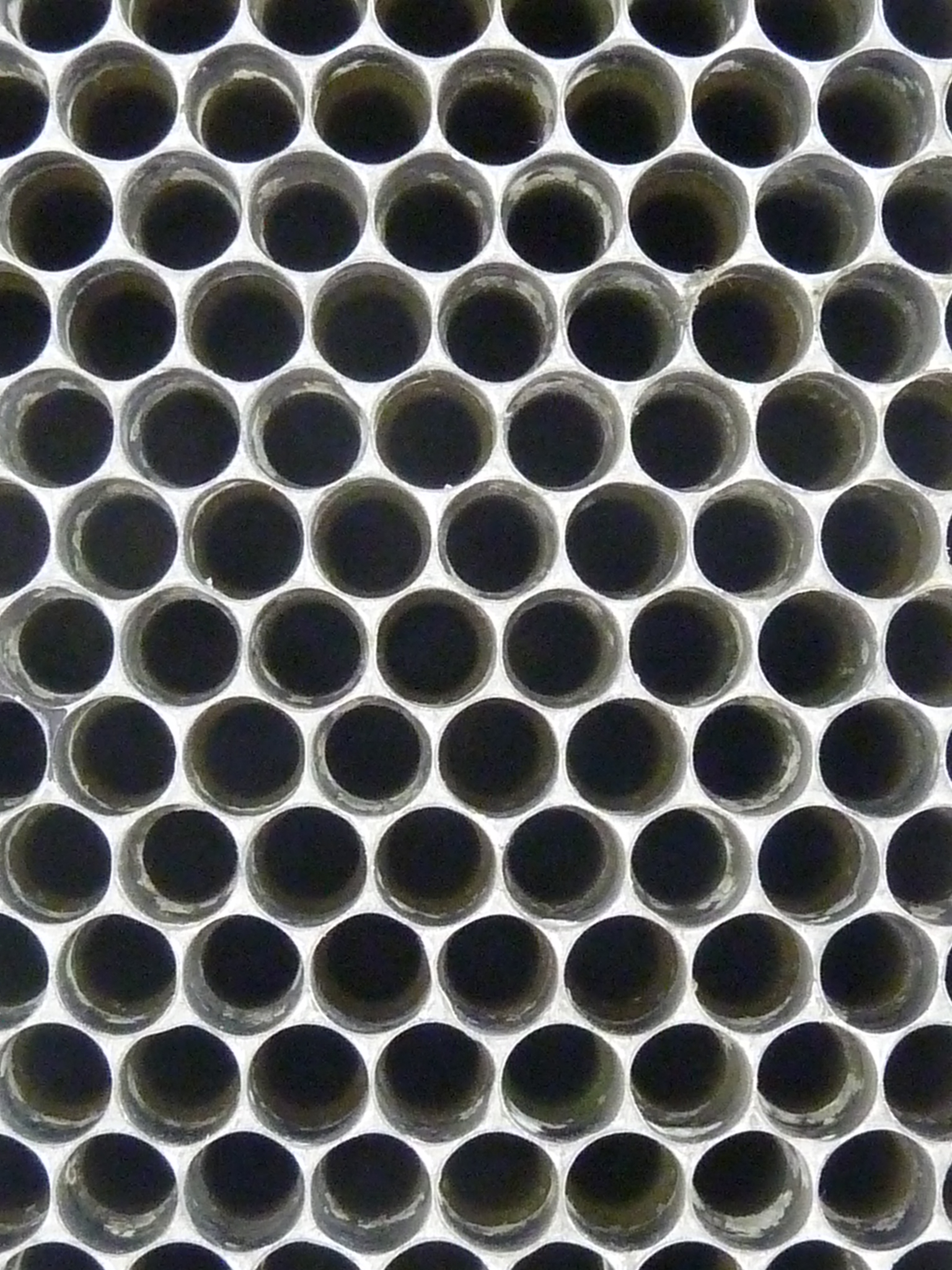

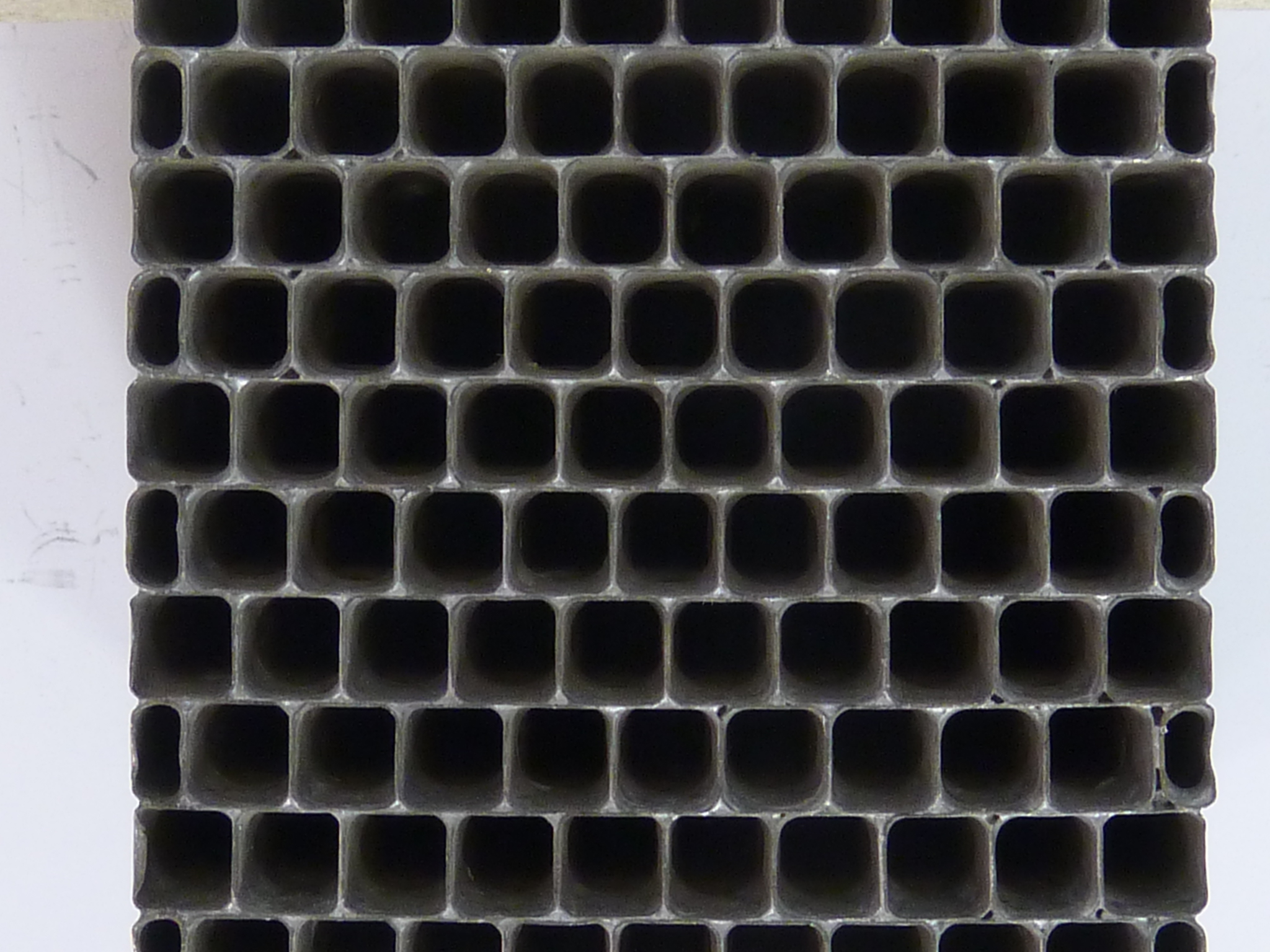

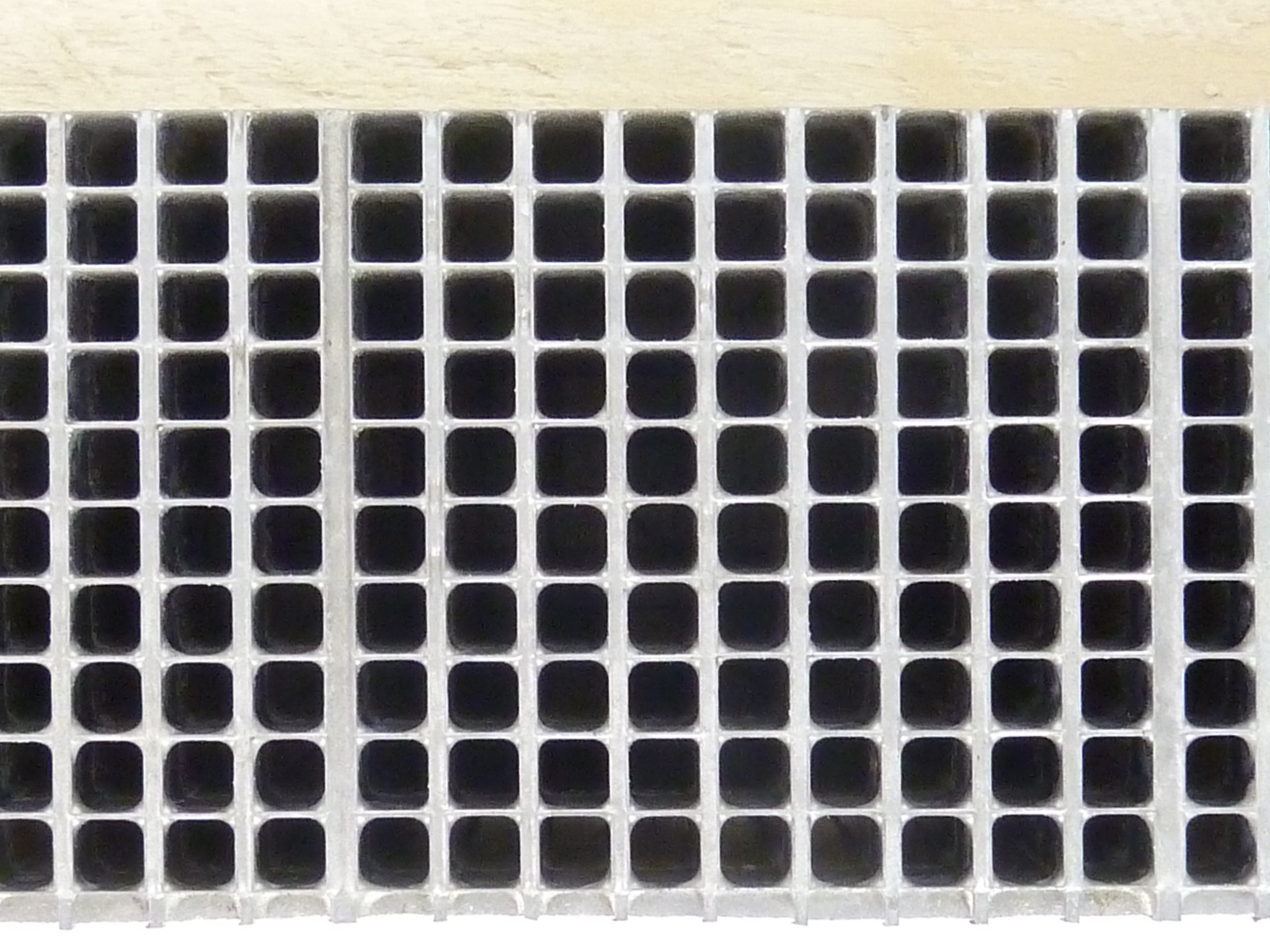

Tubular Honeycomb cores

In these cores the tubes are stacked so that the water can flow in the space between the tubes. The air passes through the tubes.

Item 1 (5)

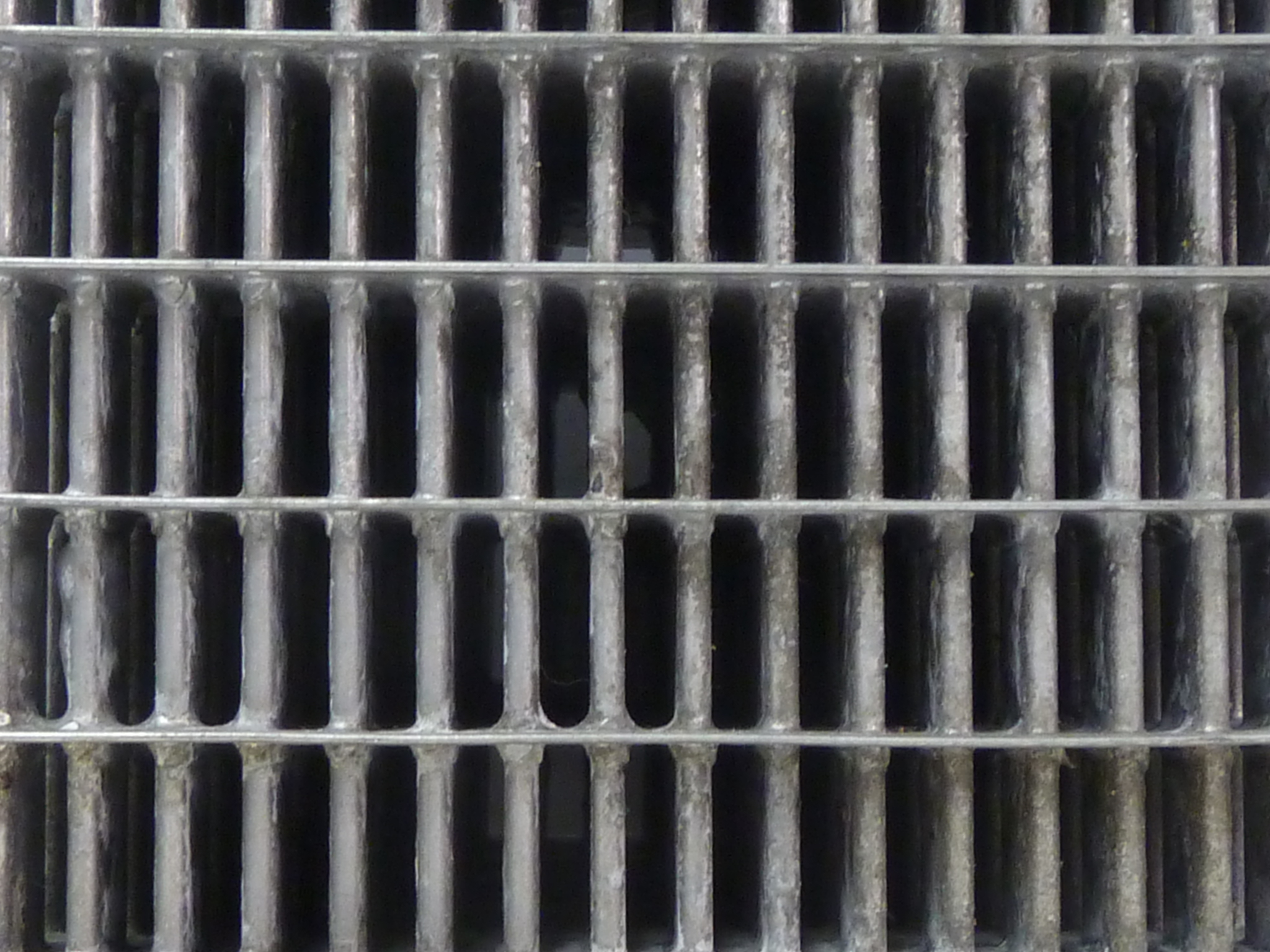

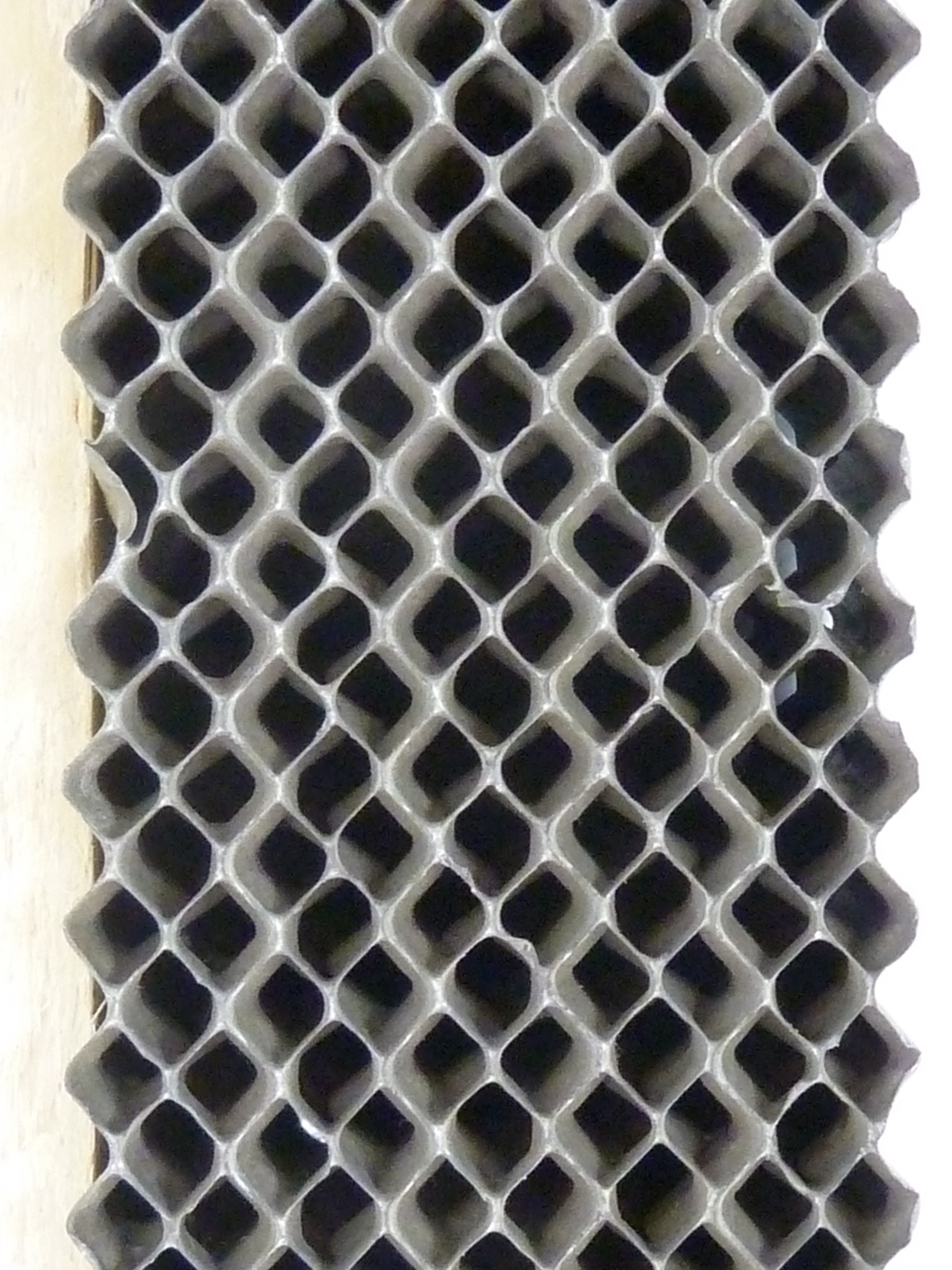

Specials

It is also possible to manufacture special types of cores. For many makes of cars the core pattern is very distinctive for the make. We can make tooling for one-offs.

Item 1 (4)

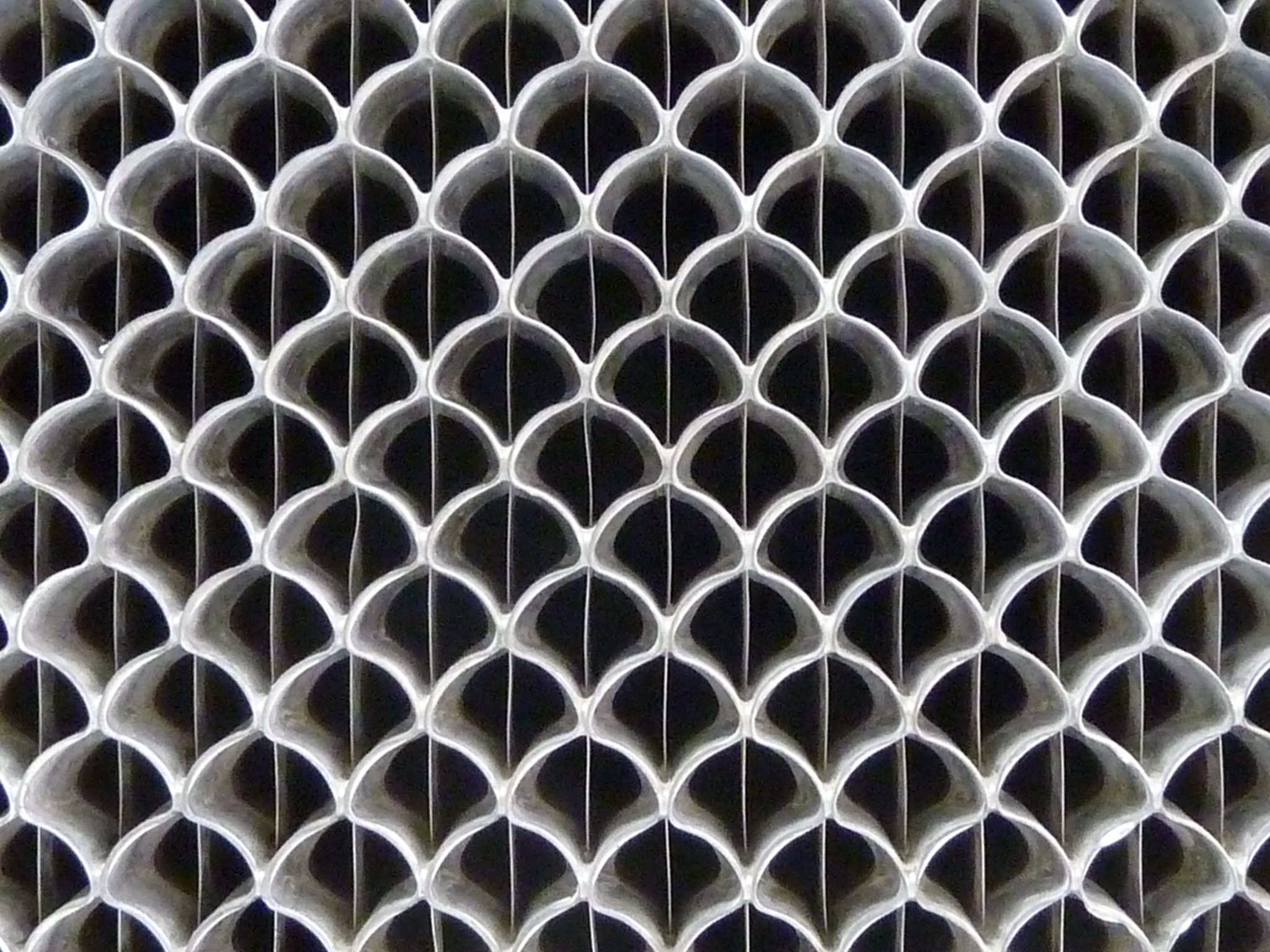

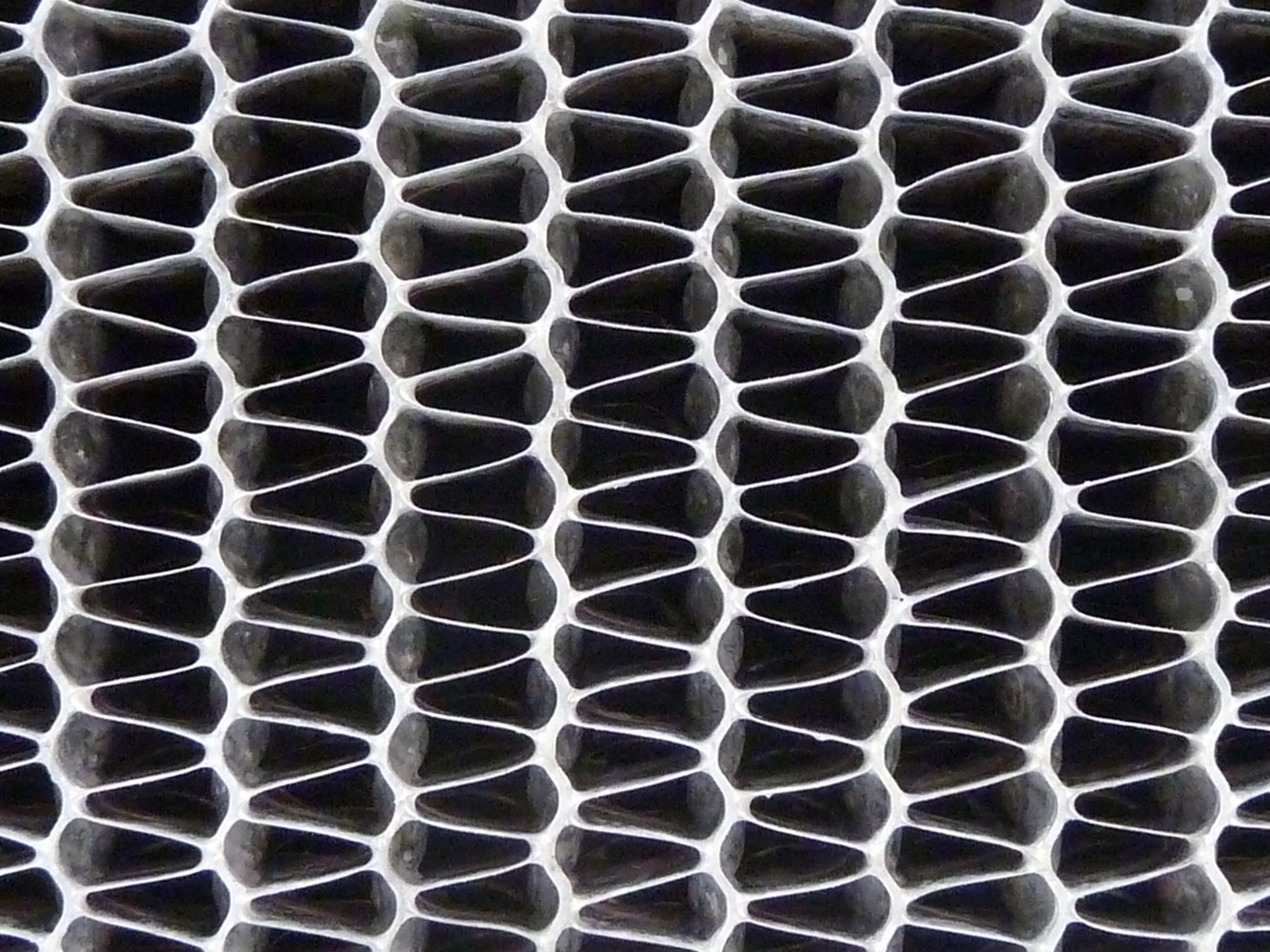

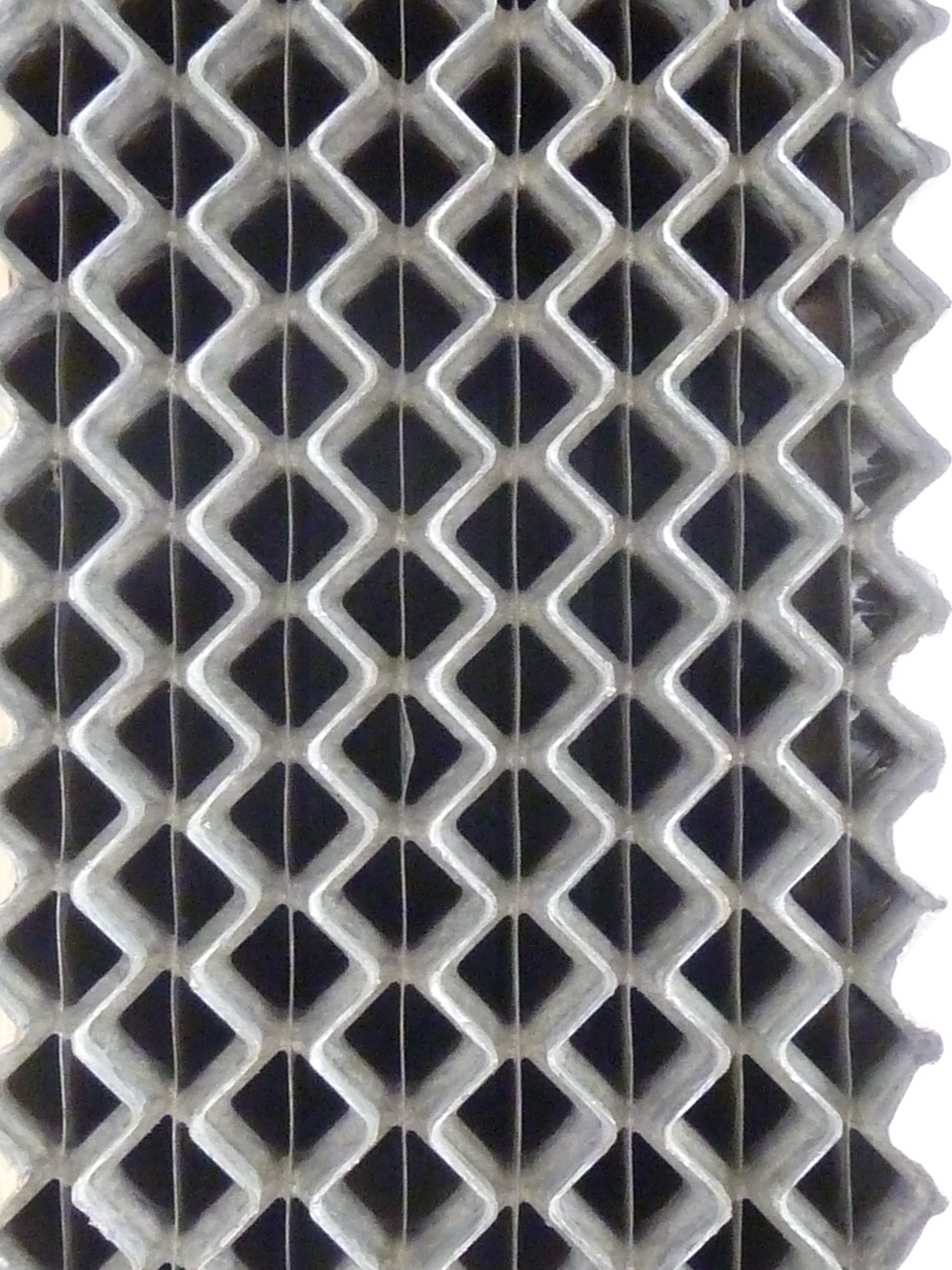

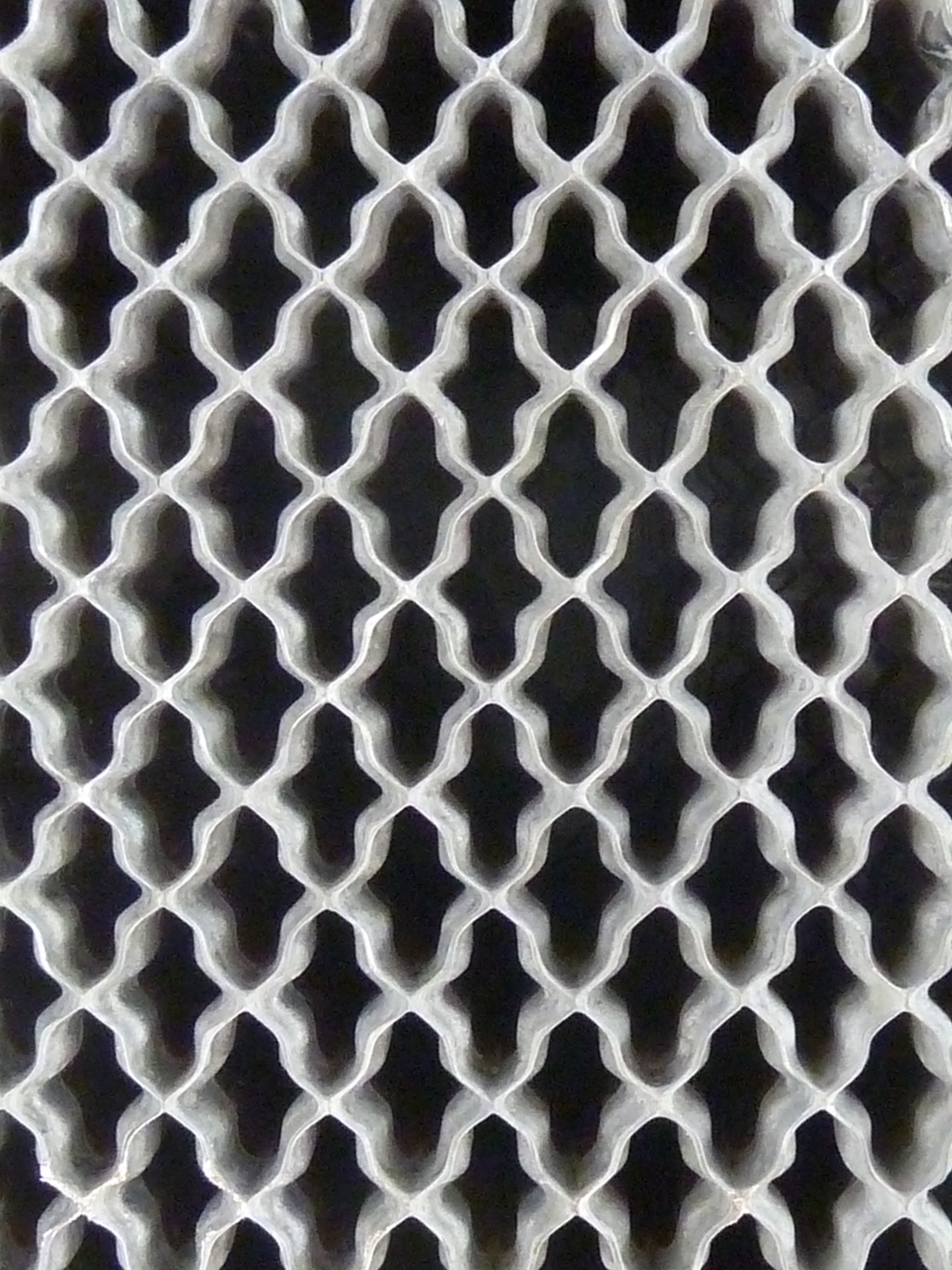

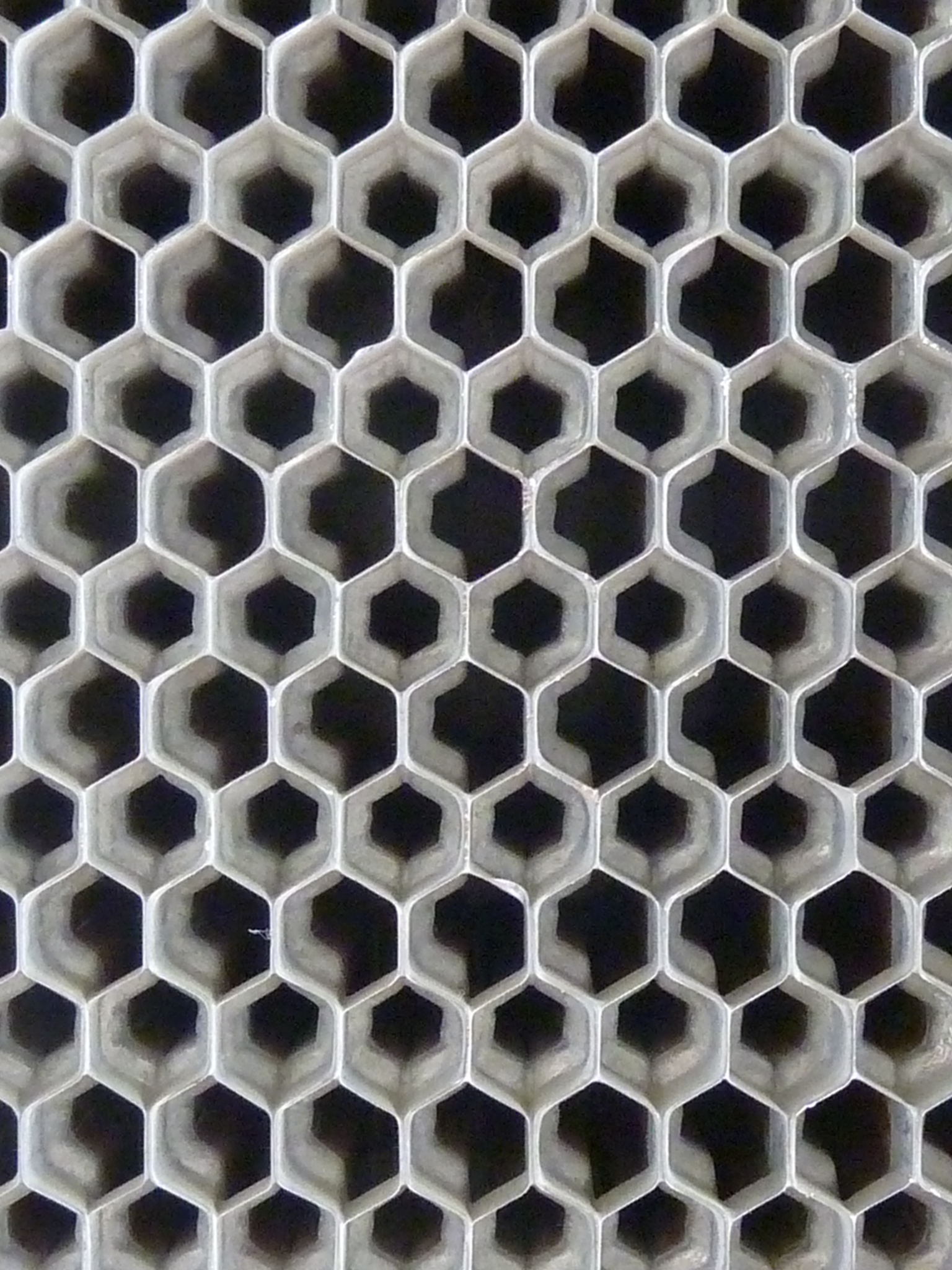

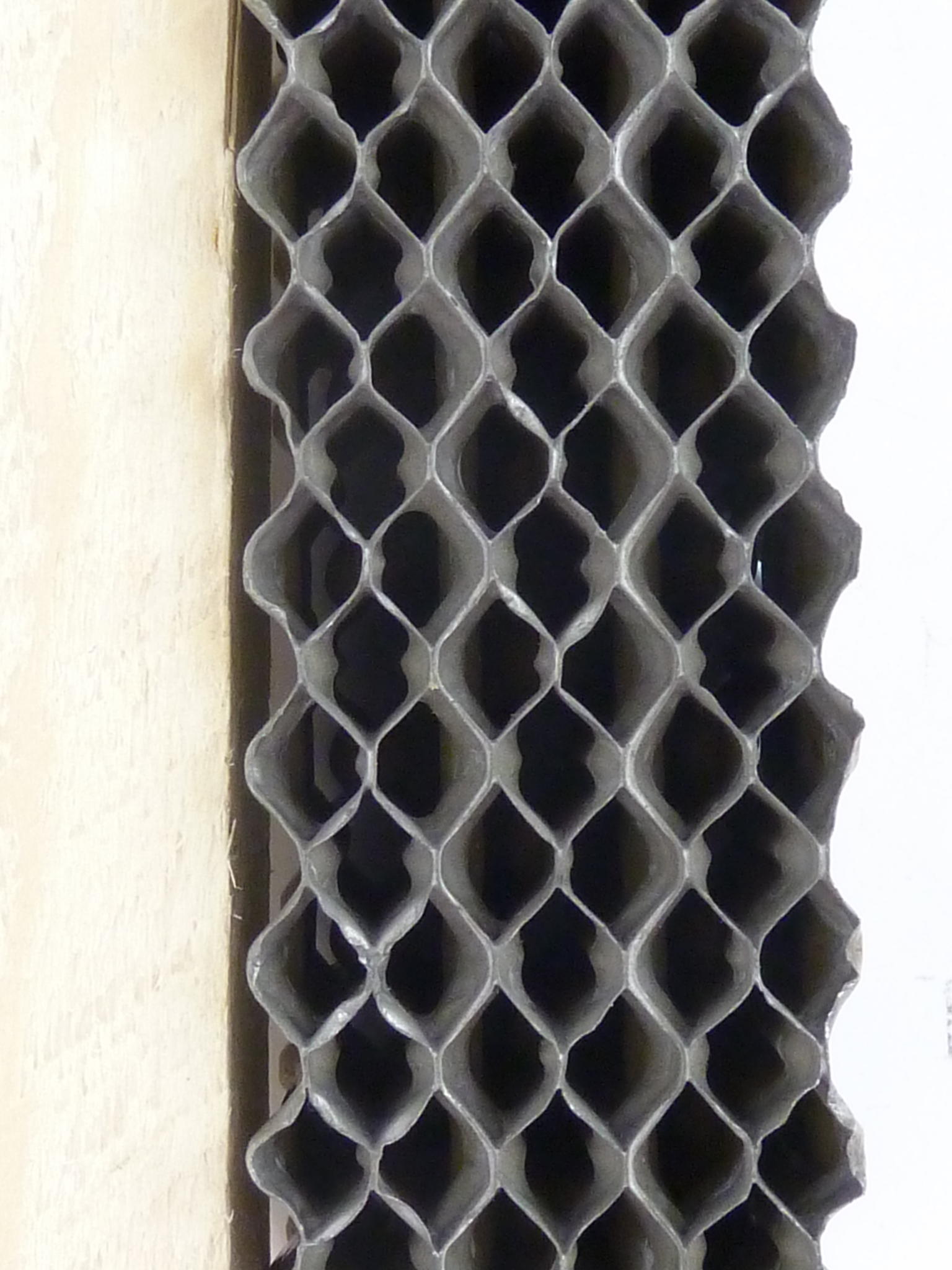

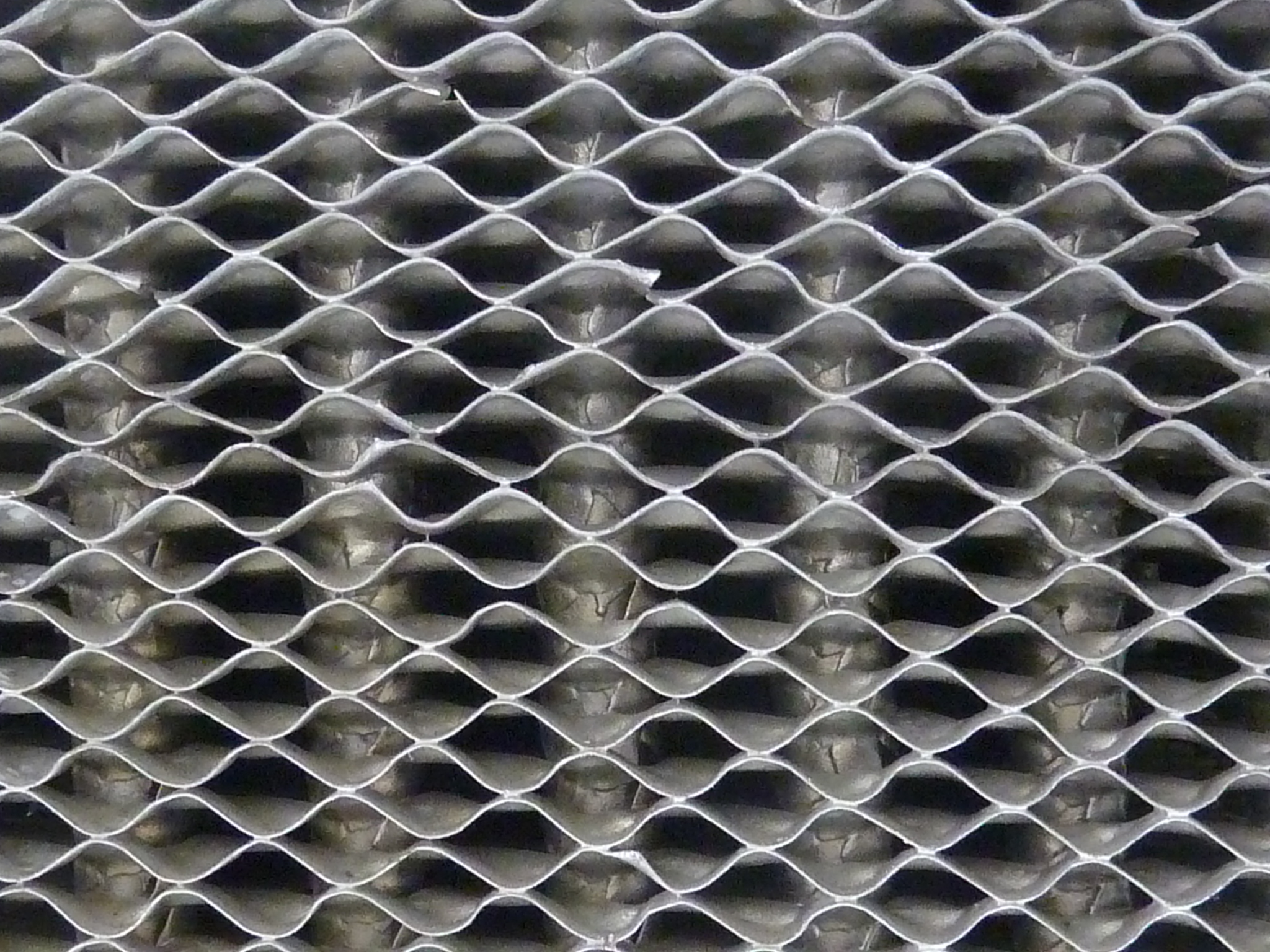

FIlm Types

Film or ribbon type cores are made by pressing or rolling copper or brass strip into a certain pattern.

Item 1 (3)

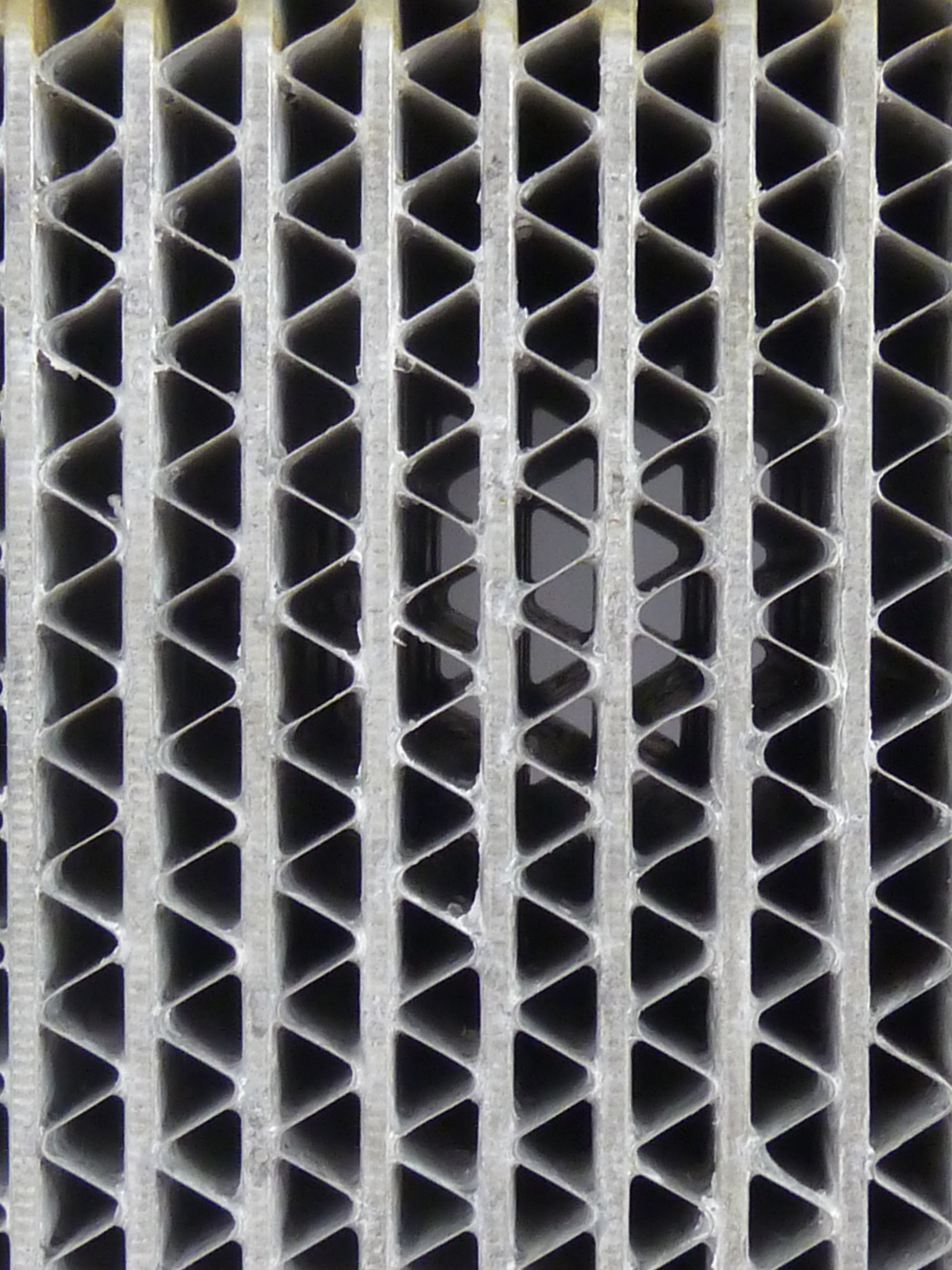

S-FIN Cores

Cores with oval tubes and S-shaped fins in between the tubes.

Item 1 (2)

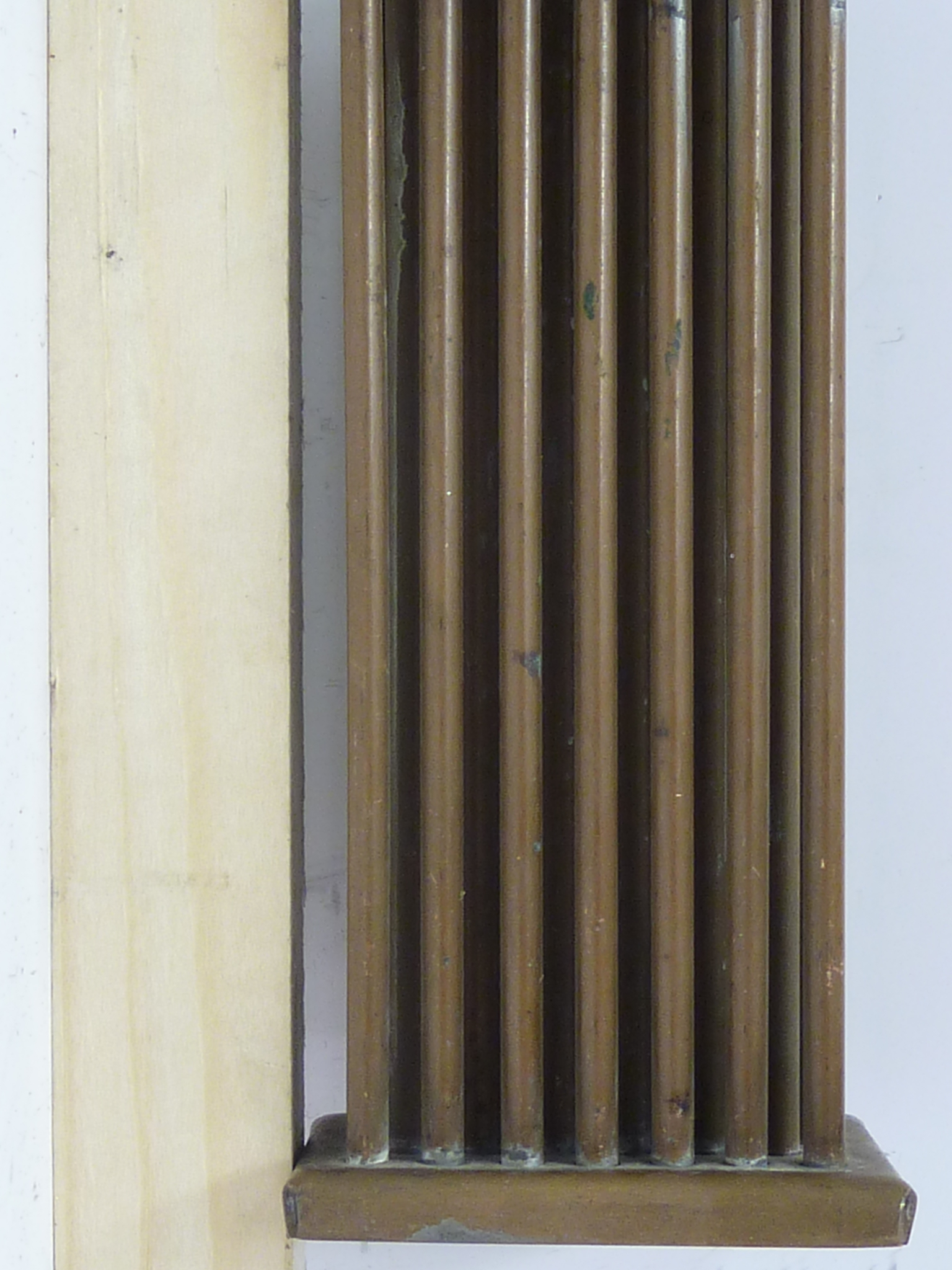

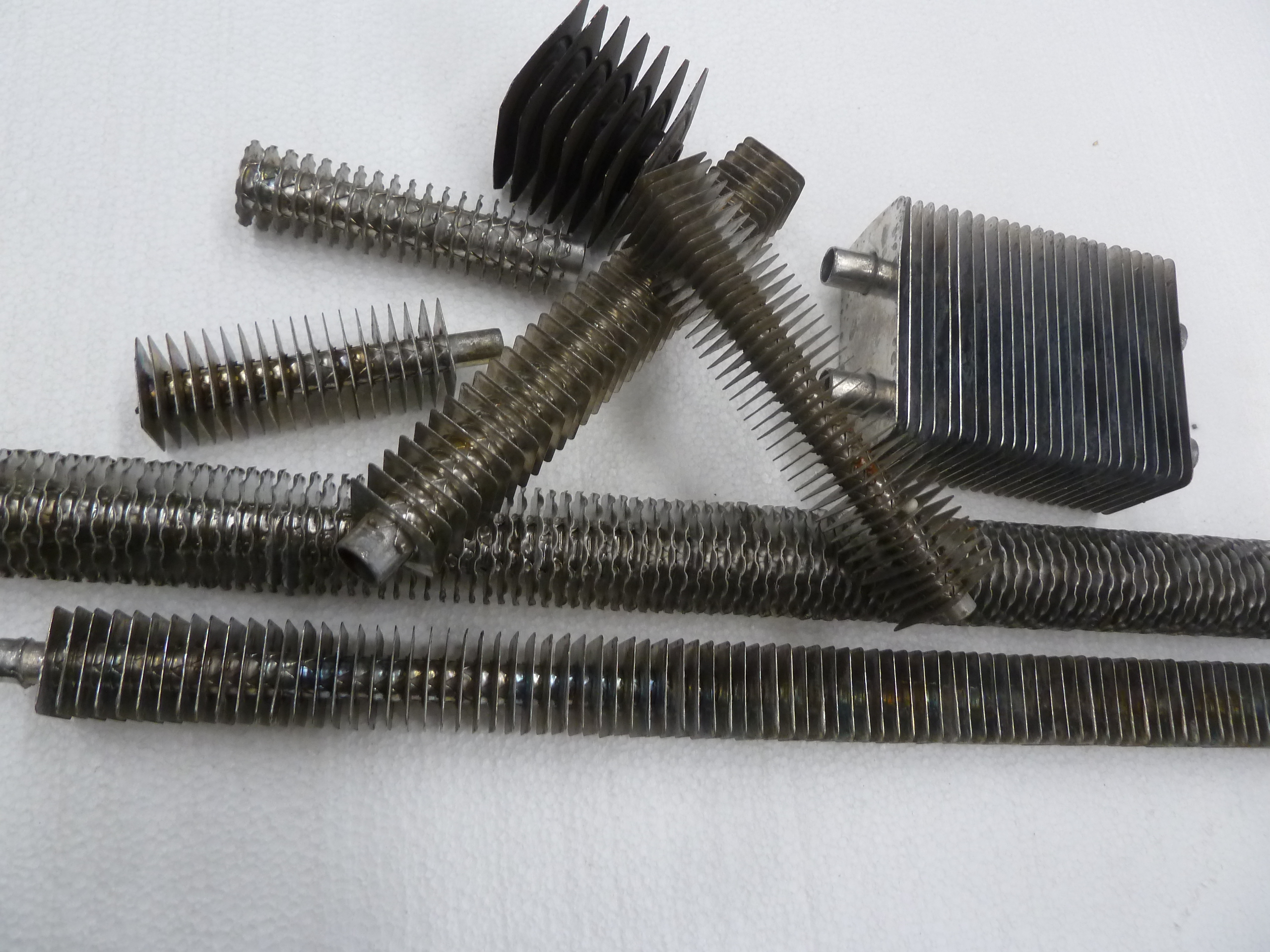

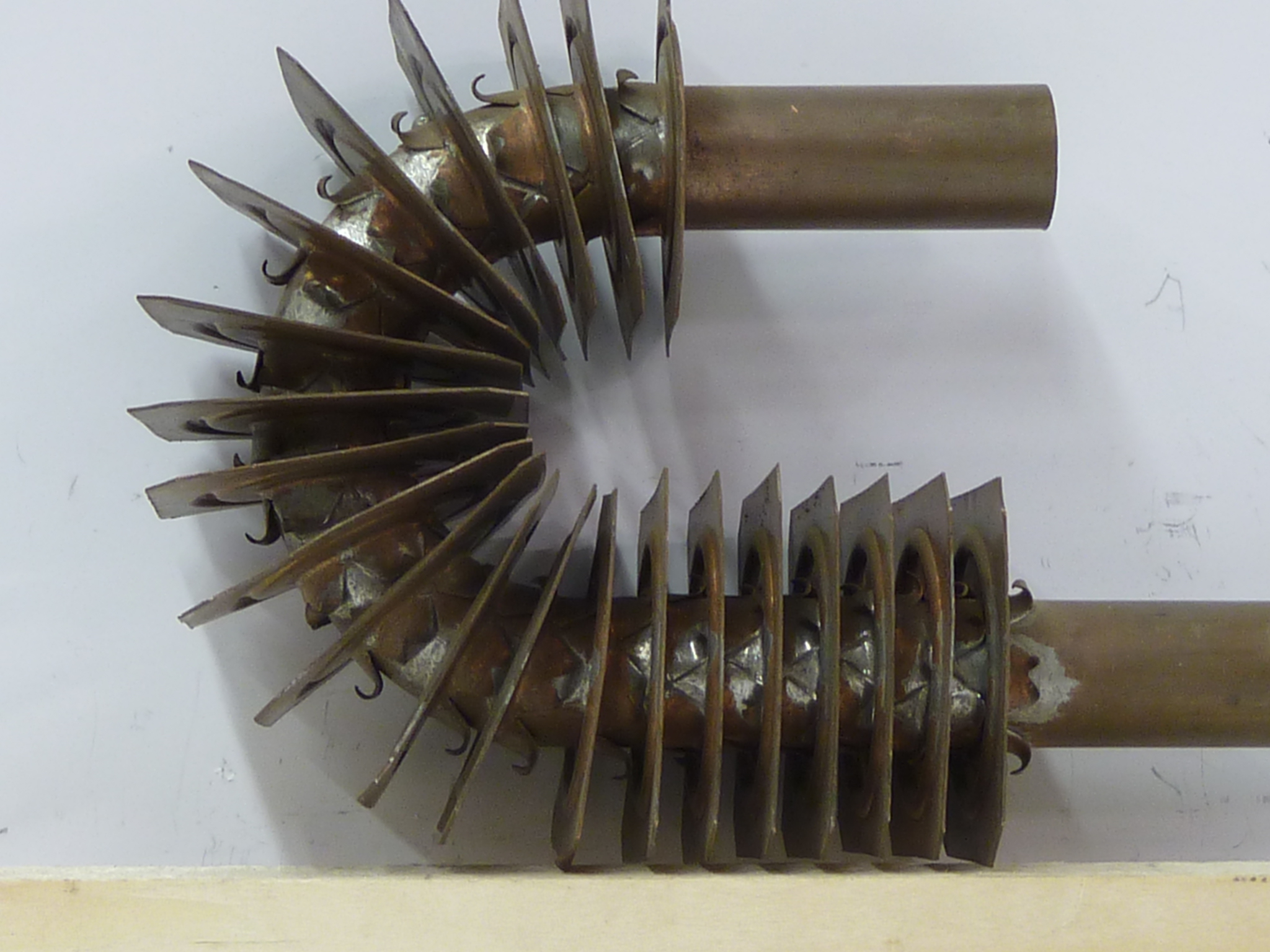

Gilled Tubes

These are round or oval tubes with fins to improve the cooling area. Gilled tubes are made in many types with round or square fins, profiled or flat, and fitted in headers or as Serpentine radiators for veteran automobiles.
